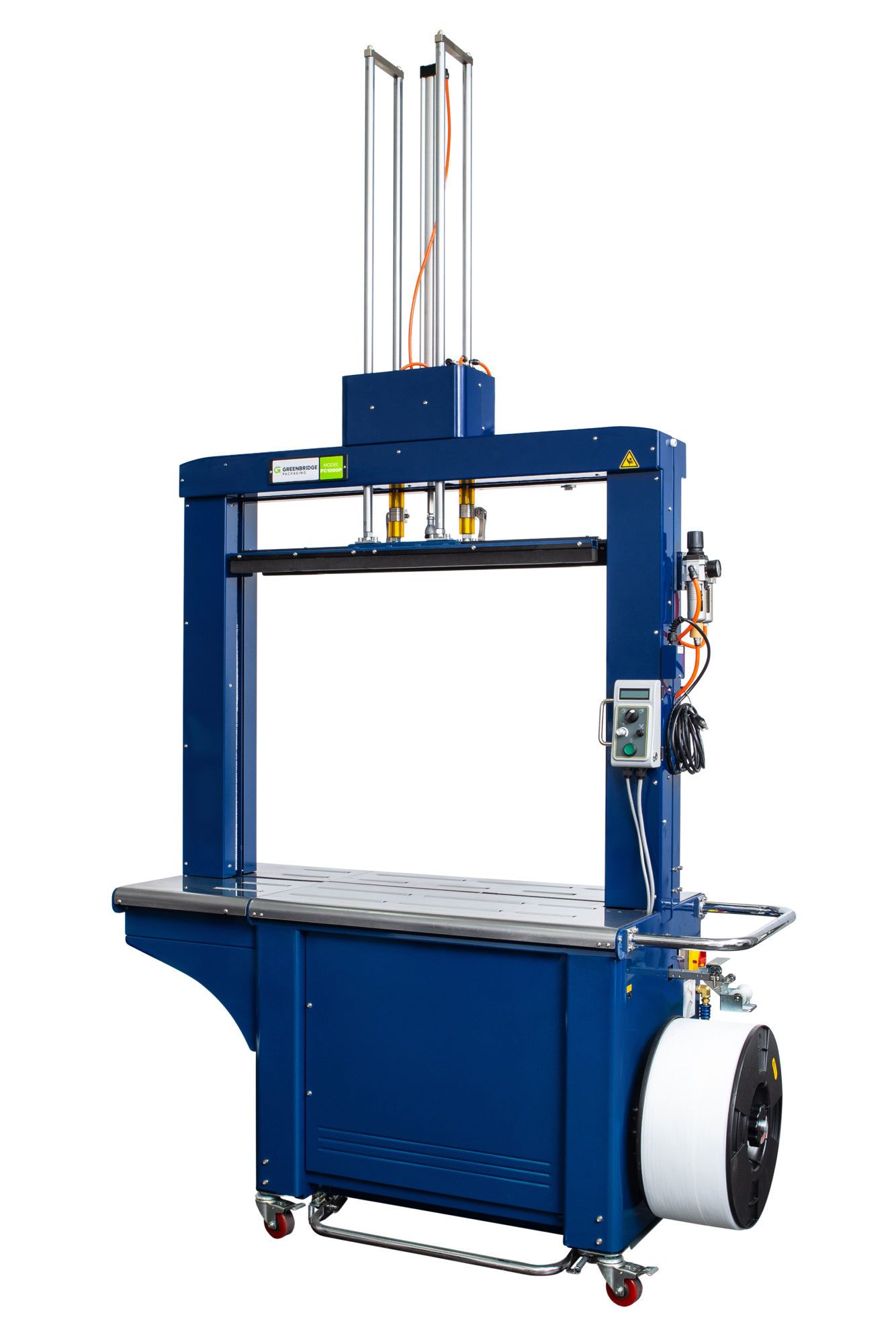

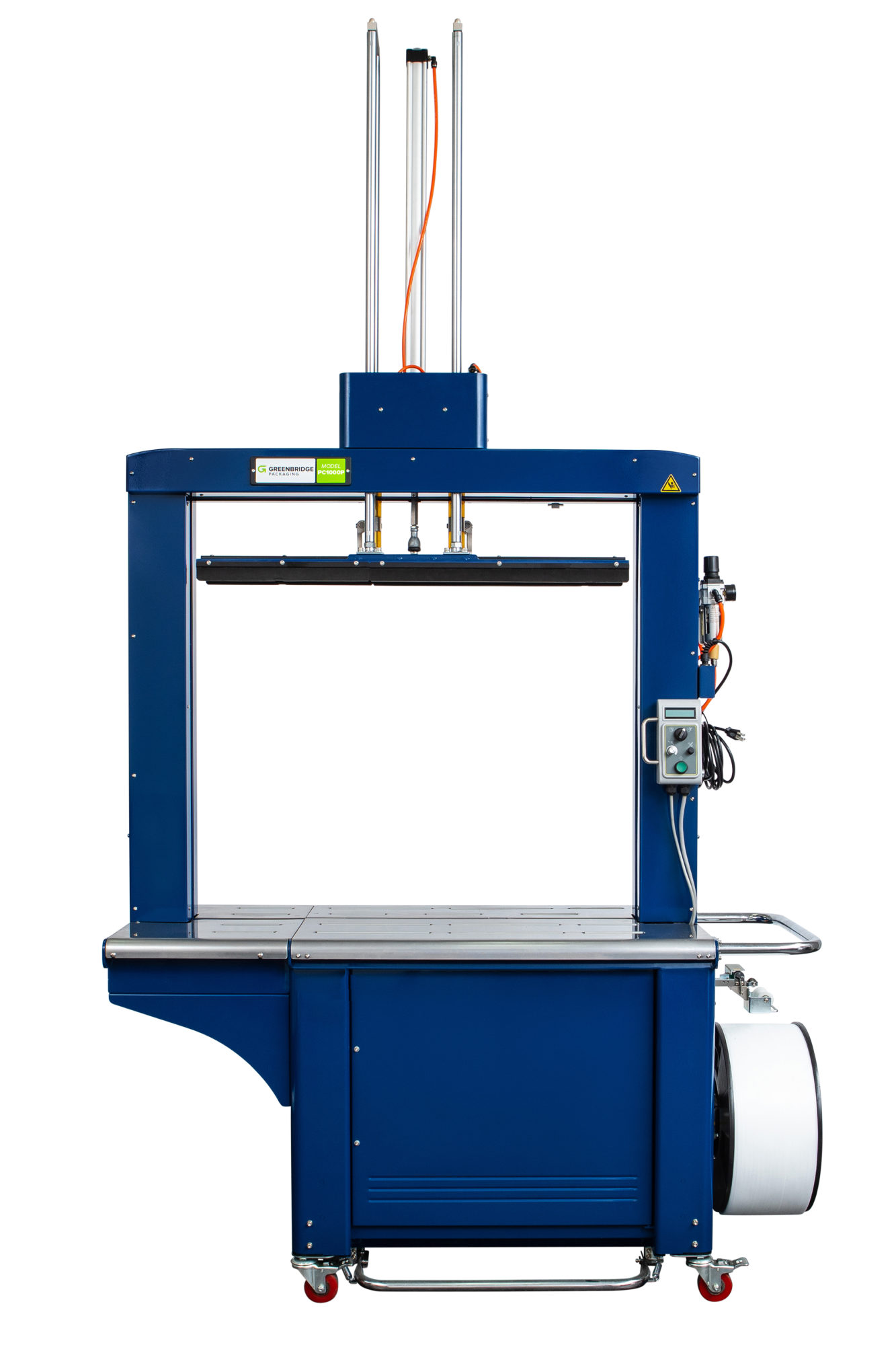

PC1000P Automatic Strapping Machines with Dual Pneumatic Press
The PC1000P with dual pneumatic press is ideal to strap compressible material such as corrugated board, paper sheets, plastic sheets, bags, and more.
Features
- Cycle speeds up to 47 straps per minute
- German DC brushless motor technology
- No belts, clutches or pulley; 30% fewer parts, less maintenance
- Waist-high quick chance coil and strap feed
- Easy access operational control panel
- Front foot-bar pedal plus moveable footswitch
- One-piece strap chute
- Sensor-controlled heater
- End-of-coil strap ejector/loop ejector
- Electronic brake
- Table height adjusts from 32″-36″
- Lockable casters
| Cycle Rate | Compact: Up to 47 straps per minute |
| Standard: Up to 44 straps per minutes | |
| Package Weight | Up to 100 lbs. |
| Strap Tension | Compact: Up to 70 lbs. |
| Standard: Up to 100 lbs. | |
| Polypropylene Strap | ¼”, 3/8”, ½” |
| 5mm, 6mm, 9mm, 3/8″, 12mm | |
| Electrical Requirements | 110V, 220V, 230V |
| 50/60Hz 1 Phase | |
| Shipping Weight | 500 lbs. |
| Optional | Photo eye switch |
| Rear foot bar switch | |
| Lower adjustable table | |
| Height 30”-32” |
