Load Securement

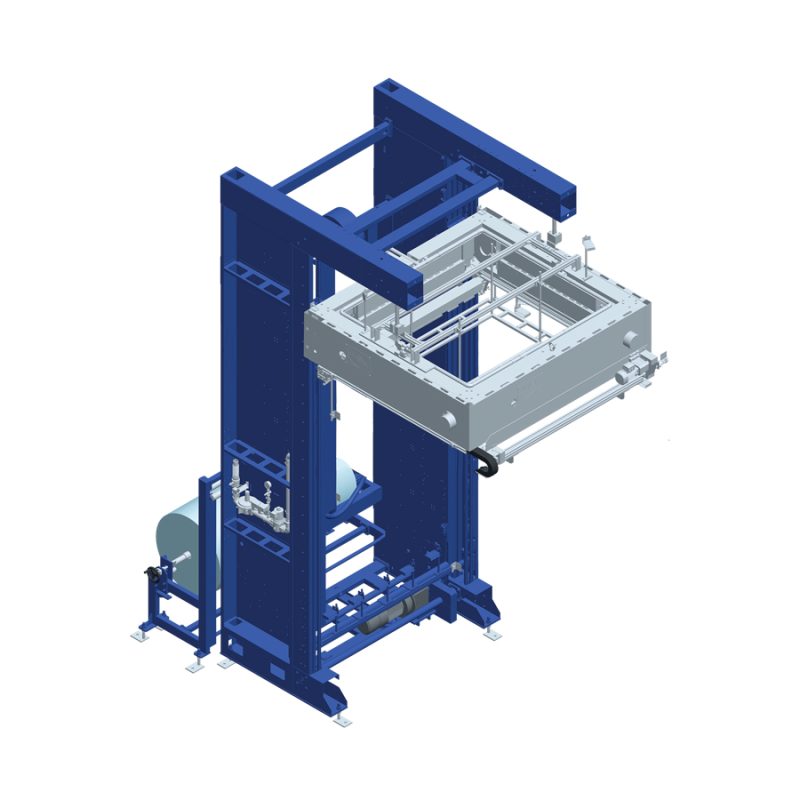

PFT53 Thermo Hooding System

The FT53 TOP PAL model is an automatic system to apply and thermoshrink a sheet of plastic film on the top of a load.

This model satisfies the need to hermetically and mechanically protect the top of the load subject to tear due to stacking and ensure a better hermetic seal on the hood’s welding.

The film is shrunk on the product by a ring-like gas oven and the machine can handle up to 80 pallets / hour.

All use and maintenance automatic and manual functions are controlled by a PLC.

Pallet dimensions:

L1300 x W 1100 x H 500 ÷ 2900mm

  • Film Type: polyethylene thermo
  • Thickness : 60 ÷ 200 micron
  • Coil diameter max: ø1000 mm
  • Coil weight max: 1000 kg
  • Coil width max.: 1600 mm
  • Electrical Supply : 400 V 50 Hz three-phase
  • Installed Power: 6,5 kW
  • Air Pressure: 5,5 ÷ 7 bar
  • Gas Type: propane or methane (butane)
  • Gas Pressure: 200 mbar -15% / +5%
