PC101 + PC102 Semi-Automatic Tabletop Strappers




Looking for a better way to secure small boxes or orders for your shop or eCommerce application?
You won’t find better semi-automatic tabletop strappers than Greenbridge’s PC101 and PC102.Shipped fully assembled and ready to use, these mighty mites are designed to quickly and efficiently secure each package with a minimum of effort. Virtually anyone can learn to operate these machines and we’re ready to show you how.

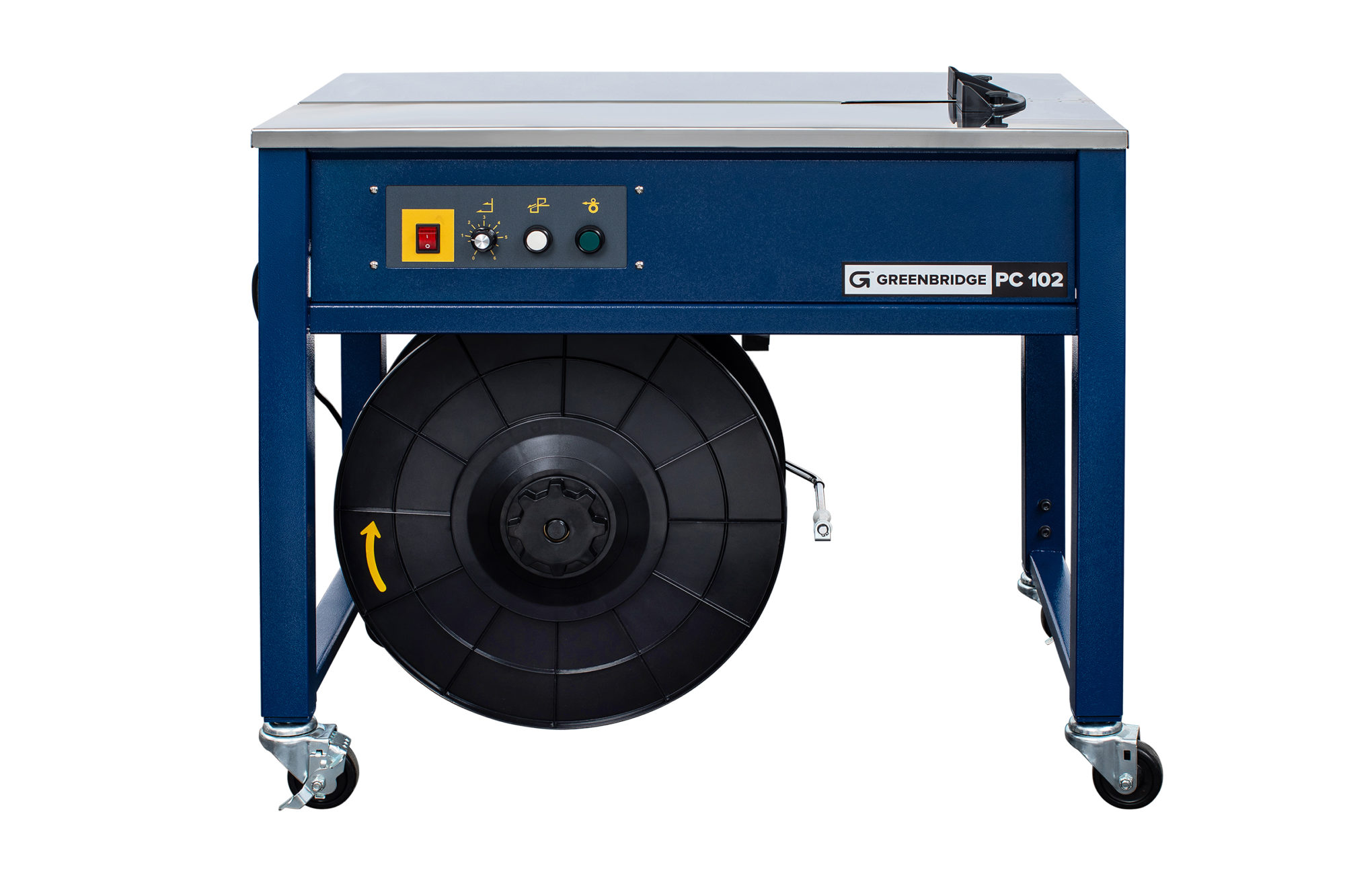

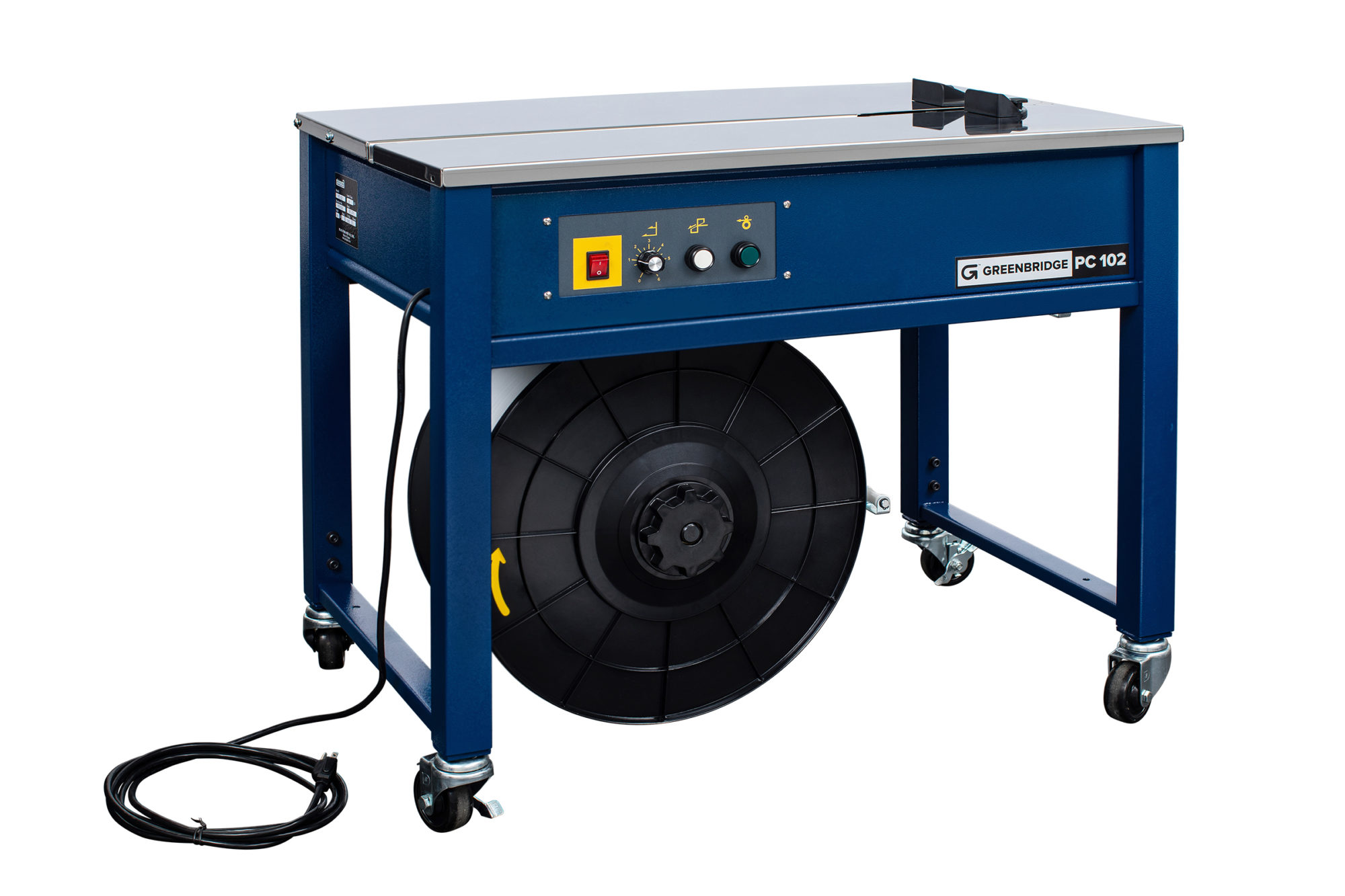

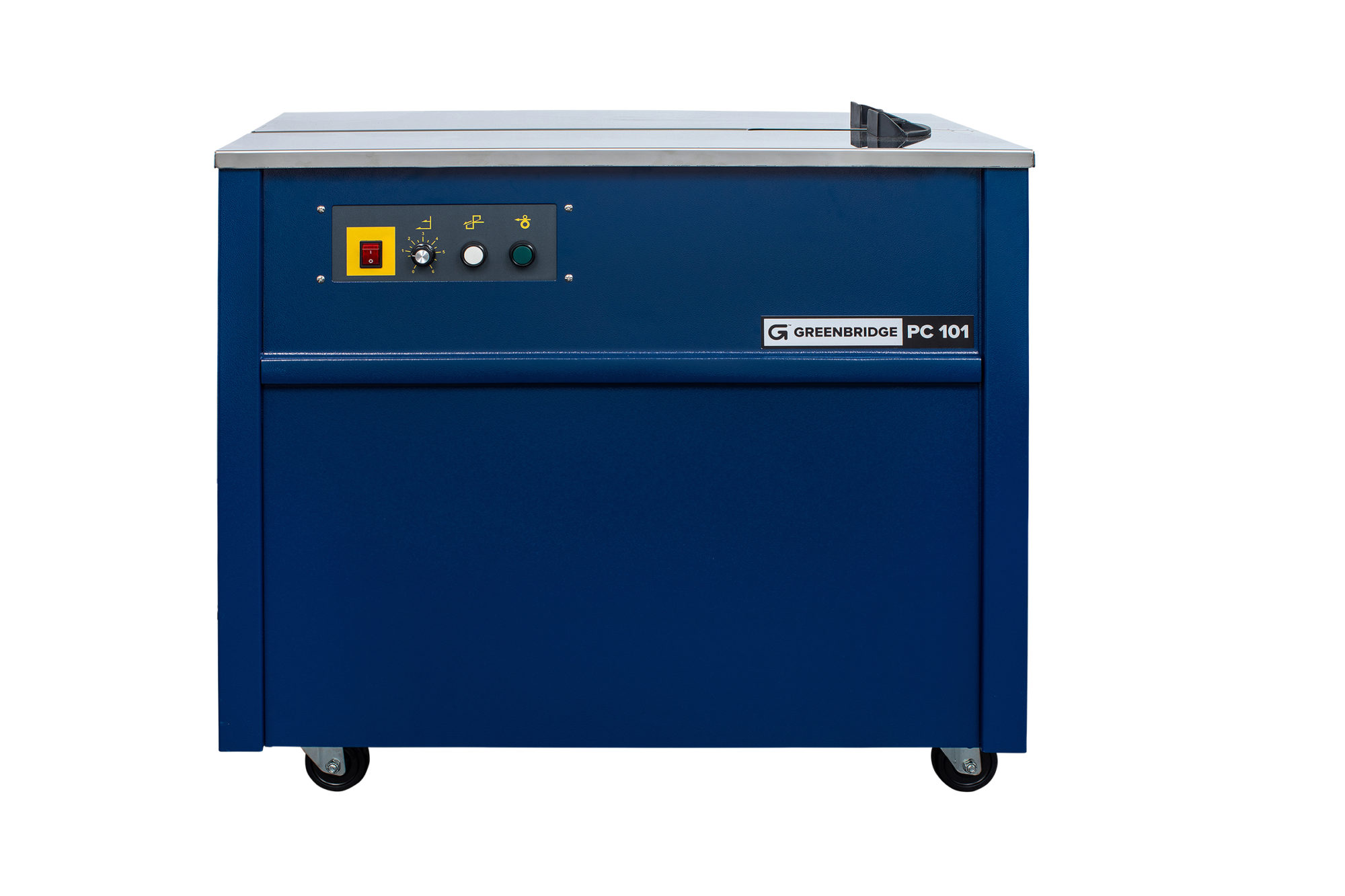

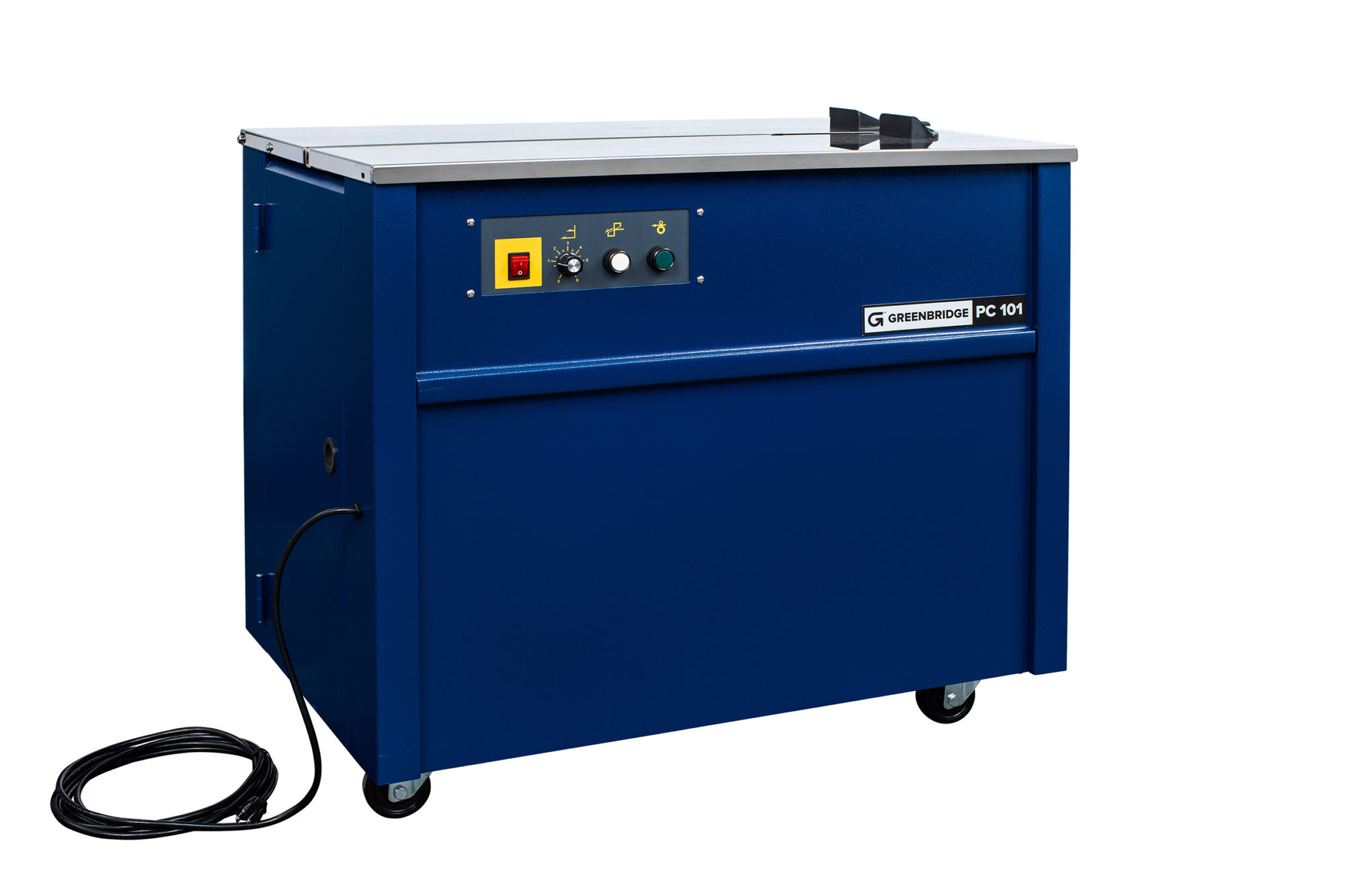

The handy PC101 features a closed cabinet design while the PC102 is open cabinet with height adjustable legs. Both ship fully tested and assembled
FEATURES:
- Cycle speed up to 65 straps per minute (based on arch size)
- German DC brushless motor technology
- 30% fewer parts – no belts, clutches or pulleys
- Waist-high quick change coil + strap feed
- Easy access operating control panel
- One-piece strap chute
- Easy access strap chute, no tools required
- Front foot bar pedal plus movable foot switch
- Sensor-controlled heater
- End of strap coil ejector/loop ejector
- Electronic brake/Auto loader
- Adjustable table height from 32” to 36”
- Easy to move + secure in place with lockable casters
- Choice of arch size
- PC101-PC102 MANUAL
Cycle Rate | 2.5 sec/strap (60Hz) |
Sealing Method | Heating element |
Reel Outside Diameter | 19” |
Strap Tension | 30-90 lbs. |
Table Height | 30” Non-adjustable (closed cabinet) |
29-3/4” to 38” Adjustable (open cabinet) | |
Core Sizes | 8” x 8”, 9” x 8”, 11” x 8”* |
Polypropylene Strap | ¼”, 3/8″, ½”, 5/8” |
6mm, 9mm, 12mm, 15.5mm | |
Electrical Requirements | AC 110, 60Hz, 1 Phase |
Power Consumption | 0.57KW |
Shipping Weight | 200 lbs. (closed cabinet) |
185 lbs. (open cabinet) | |
Layout Dimension | 29-1/2”H x 36-1/4”W x 23” D |
* Core insert required
