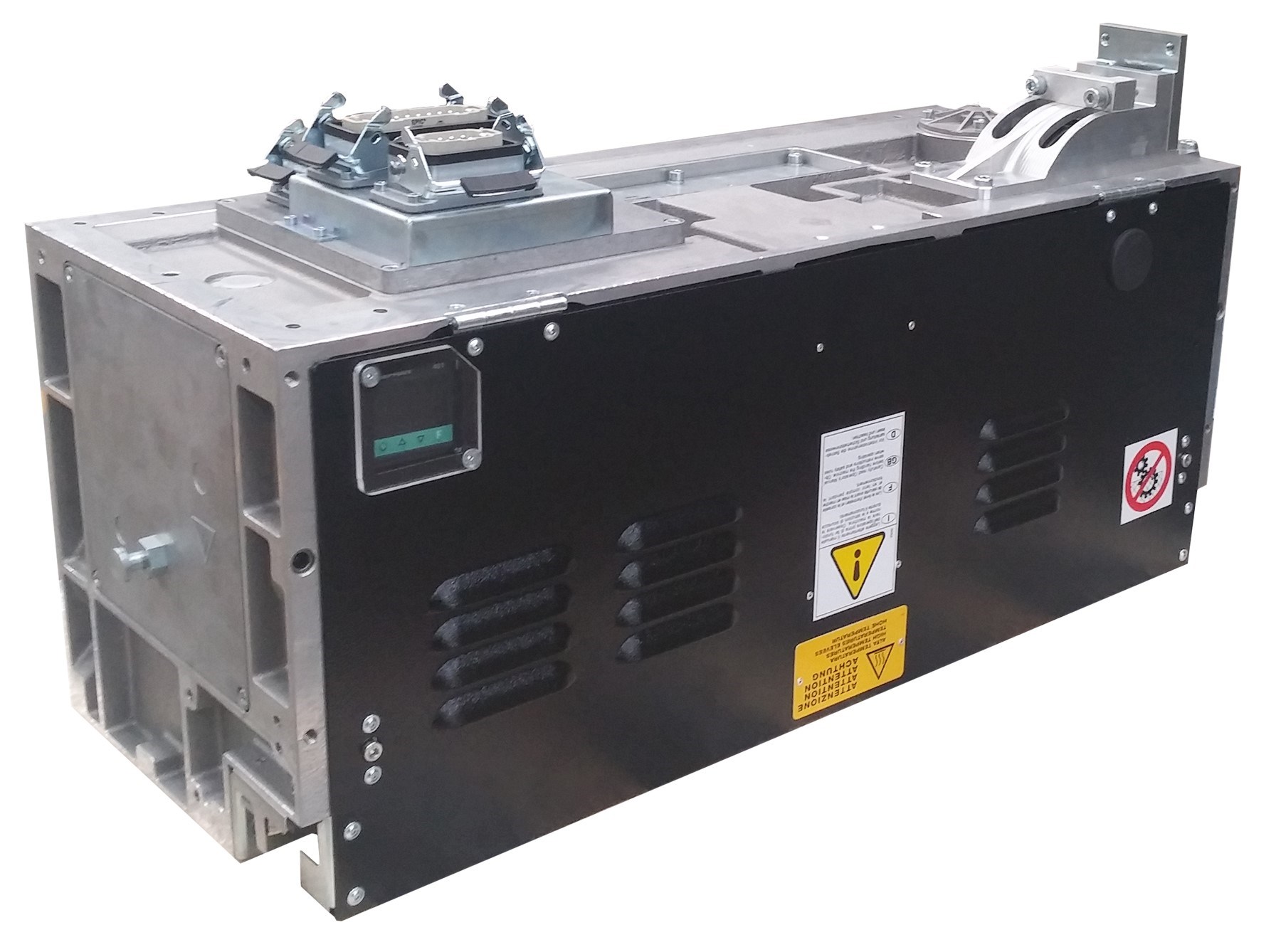

TR SER Strap Head
The versatile TR Modular Series of strapping heads is engineered to allow rapid exchange of units in the head to enable maximum throughput and minimal delays during changeovers. Quick change modular parts include welding and clamping units. These heads include long-lasting, self-cleaning heater blades perfect for polyester strapping. Strap is easy to load, with auto re-feed and strap-in-place signals. Count on the TR Modular Series strapping heads to apply consistent strap tension to a pack, securing the load like a pro.
- Heat seal technology
- Minimum moving parts, low cost of ownership, no dust generated in the sealing process
- Produces excellent quality seals
- Proven and reliable tensioning technology
- Electronic tension monitoring via load cell, calibrated circuit board and panel mounted potentiometer
- Fast, consistent strap feed and alignment
- Precise, repeatable strap feeding and alignment, avoids jams and increases uptime
- Rapid head replacement
- Strapping head can be easily removed in 15 minutes, if required, by releasing the retaining bolts and snap plug connections
- Models to suit all industries – TR14, TR14HD, TR1400HD, TR18, TR1800, TR19HT, TR2000
| TECHNICAL SPECIFICATIONS | TRCB | TR14 | TR14HD | TR18 | TR19HD |
|---|---|---|---|---|---|
| STRAP TYPE | PET | PP-PET | PP-PET | PET | PET |
| STRAP WIDTH | .37 | From .37″ to .62″ | From .37″ to .62″ | From .50″ to .75″ | From .50″ to .75″ |
| STRAP THICKNESS | From .015 | From .019″ to .030″ | From .019″ to .030″ | From .030″ to .050″ | From .030″ to .050″ |
| MAXIMUM PACK TENSIONING | 1500 LBS | 400 LBS | 400 LBS | 900 LBS | 1500 LBS |
| CONTINUOUS USE TENSIONING | 1500 LBS | 200 LBS | 400 LBS | 600 LBS | 1500 LBS |
| UTILIZATION TEMPERATURE | 32º – 120º F | 32º – 120º F | 32º – 120º F | 32º – 120º F | 32º – 120º F |
| NOISE LEVEL | 70 Db | 70 Db | 70 Db | 70 Db | 70 Db |
